BIND9多view中使用tsigkey同步域信息

发表于 更新于 分类于

环境描述

主DNS维护三个view：

  • user1
  • user2
  • default

三个view均包含了域aaaa.com的信息，现在需要将主DNS上的aaaa.com域信息分别对应地传输到从DNS上。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
+-------------------+      +-------------------+
|       主DNS       | ---\ |      从DNS        |
| (192.168.18.143)  | ---/ | (192.168.18.144)  |
+-------------------+      +-------------------+
        |
+-------------------+      +-------------------+
|     "aaaa.com"    | ---\ |     "aaaa.com"    |
|  in view "user1"  | ---/ |  in view "user1"  |
+-------------------+      +-------------------+
        |                          |
+-------------------+      +-------------------+
|     "aaaa.com"    | ---\ |     "aaaa.com"    |
|  in view "user2"  | ---/ |  in view "user2"  |
+-------------------+      +-------------------+
        |                          |
+-------------------+      +-------------------+
|     "aaaa.com"    | ---\ |     "aaaa.com"    |
| in view "default" | ---/ | in view "default" |
+-------------------+      +-------------------+
1
2
3
4
5
6
7
8
9
10
11
12
13
14
$TTL    600
@       IN    SOA    dns1.aaaa.com. aaaa.com. (
                                        0       ; serial
                                        1D      ; refresh
                                        1H      ; retry
                                        1W      ; expire
                                        3H )    ; minimum
@       NS      dns1
@       NS      dns2
@       NS      dns3
dns1    A    192.168.18.143
dns2    A    192.168.18.144
dns3    A    192.168.18.145
user    A    192.168.18.144
1
2
3
4
5
6
7
8
9
10
11
12
13
14
$TTL    600
@       IN    SOA    dns1.aaaa.com. aaaa.com. (
                                        0       ; serial
                                        1D      ; refresh
                                        1H      ; retry
                                        1W      ; expire
                                        3H )    ; minimum
@       NS      dns1
@       NS      dns2
@       NS      dns3
dns1    A    192.168.18.143
dns2    A    192.168.18.144
dns3    A    192.168.18.145
user    A    192.168.18.145
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
$TTL    600
@       IN    SOA    dns1.aaaa.com. aaaa.com. (
                                        0       ; serial
                                        1D      ; refresh
                                        1H      ; retry
                                        1W      ; expire
                                        3H )    ; minimum
@       NS      dns1
@       NS      dns2
@       NS      dns3
dns1    A    192.168.18.143
dns2    A    192.168.18.144
dns3    A    192.168.18.145
user    A    192.168.18.144
user    A    192.168.18.145

主从侧DNS配置

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
key "user1key" {
    algorithm hmac-md5;
    secret "yJlkV++JGsTTkvdZJHO2ww==";
};

key "user2key" {
    algorithm hmac-md5;
    secret "QZUrG/ATFi9GlPvOoQF15w==";
};

key "defaultkey" {
    algorithm hmac-md5;
    secret "vezhpYBM2goIYIV71BK4lQ==";
};

view "user1" {
    match-clients { key user1key; };
    recursion no;
    allow-transfer { key user1key; };
    server 192.168.18.144 { keys user1key; };
    zone "." { type hint; file "named.ca"; };
    zone "aaaa.com" { type master; file "aaaa.com.user1"; };
};

view "user2" {
    match-clients { key user2key; };
    recursion no;
    allow-transfer { key user2key; };
    server 192.168.18.144 { keys user2key; };
    zone "." { type hint; file "named.ca"; };
    zone "aaaa.com" { type master; file "aaaa.com.user2"; };
};

view "default" {
    match-clients { key defaultkey; };
    recursion no;
    allow-transfer { key defaultkey; };
    server 192.168.18.144 { keys defaultkey; };
    zone "." { type hint; file "named.ca"; };
    zone "aaaa.com" { type master; file "aaaa.com.default"; };
};
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
key "user1key" {
    algorithm hmac-md5;
    secret "yJlkV++JGsTTkvdZJHO2ww==";
};

key "user2key" {
    algorithm hmac-md5;
    secret "QZUrG/ATFi9GlPvOoQF15w==";
};

key "defaultkey" {
    algorithm hmac-md5;
    secret "vezhpYBM2goIYIV71BK4lQ==";
};

view "user1" {
    match-clients { key user1key; };
    recursion no;
    allow-transfer { 192.168.18.144; };
    server 192.168.18.143 { keys user1key; };
    zone "." { type hint; file "named.ca"; };
    zone "aaaa.com" { type slave; masters { 192.168.18.143; }; file "aaaa.com.user1"; };
};

view "user2" {
    match-clients { key user2key; };
    recursion no;
    allow-transfer { 192.168.18.144; };
    server 192.168.18.143 { keys user2key; };
    zone "." { type hint; file "named.ca"; };
    zone "aaaa.com" { type slave; masters { 192.168.18.143; }; file "aaaa.com.user2"; };
};

view "default" {
    match-clients { key defaultkey; };
    recursion no;
    allow-transfer { 192.168.18.144; };
    server 192.168.18.143 { keys defaultkey; };
    zone "." { type hint; file "named.ca"; };
    zone "aaaa.com" { type slave; masters { 192.168.18.143; }; file "aaaa.com.default"; };
};

验证

验证步骤：

  1. 启动主从DNS服务；

  2. 在192.168.18.143上，将DNS解析地址设置为192.168.18.143，使用user1key获取aaaa.com的AXFR数据：

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    [root@dns1 ~]# dig -k user1key.key @192.168.18.143 aaaa.com. AXFR

    ; <<>> DiG 9.12.2 <<>> -k user1key.key @192.168.18.143 aaaa.com. AXFR
    ; (1 server found)
    ;; global options: +cmd
    aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
    aaaa.com.        600    IN    NS    dns1.aaaa.com.
    aaaa.com.        600    IN    NS    dns2.aaaa.com.
    aaaa.com.        600    IN    NS    dns3.aaaa.com.
    dns1.aaaa.com.        600    IN    A    192.168.18.143
    dns2.aaaa.com.        600    IN    A    192.168.18.144
    dns3.aaaa.com.        600    IN    A    192.168.18.145
    user.aaaa.com.        600    IN    A    192.168.18.144
    aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
    user1key.        0    ANY    TSIG    hmac-md5.sig-alg.reg.int. 1532510827 300 16 XqpgMtmXOKCwjrvSCRB+ew== 5171 NOERROR 0
    ;; Query time: 0 msec
    ;; SERVER: 192.168.18.143#53(192.168.18.143)
    ;; WHEN: Wed Jul 25 05:27:07 EDT 2018
    ;; XFR size: 9 records (messages 1, bytes 341)

  3. 在192.168.18.143上，将DNS解析地址设置为192.168.18.143，使用user2key获取aaaa.com的AXFR数据：

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    [root@dns1 ~]# dig -k user2key.key @192.168.18.143 aaaa.com. AXFR

    ; <<>> DiG 9.12.2 <<>> -k user2key.key @192.168.18.143 aaaa.com. AXFR
    ; (1 server found)
    ;; global options: +cmd
    aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
    aaaa.com.        600    IN    NS    dns1.aaaa.com.
    aaaa.com.        600    IN    NS    dns2.aaaa.com.
    aaaa.com.        600    IN    NS    dns3.aaaa.com.
    dns1.aaaa.com.        600    IN    A    192.168.18.143
    dns2.aaaa.com.        600    IN    A    192.168.18.144
    dns3.aaaa.com.        600    IN    A    192.168.18.145
    user.aaaa.com.        600    IN    A    192.168.18.145
    aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
    user2key.        0    ANY    TSIG    hmac-md5.sig-alg.reg.int. 1532510936 300 16 U5m0brG5j7a6JHSitc4g2A== 30892 NOERROR 0
    ;; Query time: 1 msec
    ;; SERVER: 192.168.18.143#53(192.168.18.143)
    ;; WHEN: Wed Jul 25 05:28:56 EDT 2018
    ;; XFR size: 9 records (messages 1, bytes 341)

  4. 在192.168.18.143上，将DNS解析地址设置为192.168.18.143，使用defaultkey获取aaaa.com的AXFR数据：

    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    [root@dns1 ~]# dig -k defaultkey.key @192.168.18.143 aaaa.com. AXFR

    ; <<>> DiG 9.12.2 <<>> -k defaultkey.key @192.168.18.143 aaaa.com. AXFR
    ; (1 server found)
    ;; global options: +cmd
    aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
    aaaa.com.        600    IN    NS    dns1.aaaa.com.
    aaaa.com.        600    IN    NS    dns2.aaaa.com.
    aaaa.com.        600    IN    NS    dns3.aaaa.com.
    dns1.aaaa.com.        600    IN    A    192.168.18.143
    dns2.aaaa.com.        600    IN    A    192.168.18.144
    dns3.aaaa.com.        600    IN    A    192.168.18.145
    user.aaaa.com.        600    IN    A    192.168.18.144
    user.aaaa.com.        600    IN    A    192.168.18.145
    aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
    defaultkey.        0    ANY    TSIG    hmac-md5.sig-alg.reg.int. 1532511138 300 16 5tx+79oaE18eT+NvXf1rkw== 54983 NOERROR 0
    ;; Query time: 0 msec
    ;; SERVER: 192.168.18.143#53(192.168.18.143)
    ;; WHEN: Wed Jul 25 05:32:18 EDT 2018
    ;; XFR size: 10 records (messages 1, bytes 359)

  5. 可见在主DNS上可以通过TSIGKEY来获取对应的域信息。现在192.168.18.144上的启动从DNS服务器。

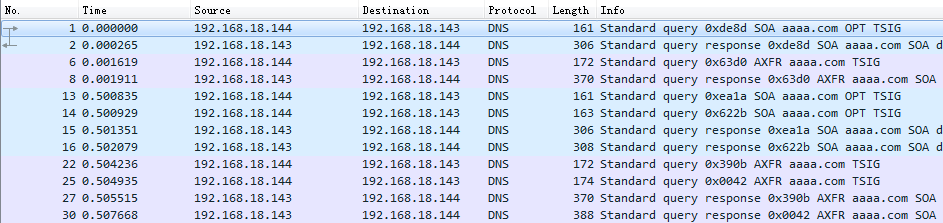

  6. 在主DNS上抓取到notify及axfr的报文：

可见aaaa.com传输了三次，对应三个view。而且每次传输过程中都带了TSIGKEY。

  1. 在192.168.18.144上重复上述2、3、4步骤，但是将解析地址换为192.168.18.144，得到的结果分别为：
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
[root@dns2 ~]# dig -k user1key.key @192.168.18.144 aaaa.com. AXFR

; <<>> DiG 9.12.2 <<>> -k user1key.key @192.168.18.144 aaaa.com. AXFR
; (1 server found)
;; global options: +cmd
aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
aaaa.com.        600    IN    NS    dns1.aaaa.com.
aaaa.com.        600    IN    NS    dns2.aaaa.com.
aaaa.com.        600    IN    NS    dns3.aaaa.com.
dns1.aaaa.com.        600    IN    A    192.168.18.143
dns2.aaaa.com.        600    IN    A    192.168.18.144
dns3.aaaa.com.        600    IN    A    192.168.18.145
user.aaaa.com.        600    IN    A    192.168.18.144
aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
user1key.        0    ANY    TSIG    hmac-md5.sig-alg.reg.int. 1532511856 300 16 AtOUZtJp8LaVJ9kjADomCg== 19175 NOERROR 0
;; Query time: 1 msec
;; SERVER: 192.168.18.144#53(192.168.18.144)
;; WHEN: Wed Jul 25 05:44:16 EDT 2018
;; XFR size: 9 records (messages 1, bytes 341)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
[root@dns2 ~]# dig -k user2key.key @192.168.18.144 aaaa.com. AXFR

; <<>> DiG 9.12.2 <<>> -k user2key.key @192.168.18.144 aaaa.com. AXFR
; (1 server found)
;; global options: +cmd
aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
aaaa.com.        600    IN    NS    dns1.aaaa.com.
aaaa.com.        600    IN    NS    dns2.aaaa.com.
aaaa.com.        600    IN    NS    dns3.aaaa.com.
dns1.aaaa.com.        600    IN    A    192.168.18.143
dns2.aaaa.com.        600    IN    A    192.168.18.144
dns3.aaaa.com.        600    IN    A    192.168.18.145
user.aaaa.com.        600    IN    A    192.168.18.145
aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
user2key.        0    ANY    TSIG    hmac-md5.sig-alg.reg.int. 1532511904 300 16 mmQlhV7XoNC1eIzRaT/g4w== 9729 NOERROR 0
;; Query time: 1 msec
;; SERVER: 192.168.18.144#53(192.168.18.144)
;; WHEN: Wed Jul 25 05:45:04 EDT 2018
;; XFR size: 9 records (messages 1, bytes 341)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
[root@dns2 ~]# dig -k defaultkey.key @192.168.18.144 aaaa.com. AXFR

; <<>> DiG 9.12.2 <<>> -k defaultkey.key @192.168.18.144 aaaa.com. AXFR
; (1 server found)
;; global options: +cmd
aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
aaaa.com.        600    IN    NS    dns1.aaaa.com.
aaaa.com.        600    IN    NS    dns2.aaaa.com.
aaaa.com.        600    IN    NS    dns3.aaaa.com.
dns1.aaaa.com.        600    IN    A    192.168.18.143
dns2.aaaa.com.        600    IN    A    192.168.18.144
dns3.aaaa.com.        600    IN    A    192.168.18.145
user.aaaa.com.        600    IN    A    192.168.18.144
user.aaaa.com.        600    IN    A    192.168.18.145
aaaa.com.        600    IN    SOA    dns1.aaaa.com. aaaa.com. 0 86400 3600 604800 10800
defaultkey.        0    ANY    TSIG    hmac-md5.sig-alg.reg.int. 1532511935 300 16 mAi9a/NVux/+qY/Le2DJYw== 47741 NOERROR 0
;; Query time: 1 msec
;; SERVER: 192.168.18.144#53(192.168.18.144)
;; WHEN: Wed Jul 25 05:45:35 EDT 2018
;; XFR size: 10 records (messages 1, bytes 359)
  1. 在从DNS验证了三个view中的aaaa.com域信息与主DNS上保持一致。
